Click pictures for larger image

Product photo

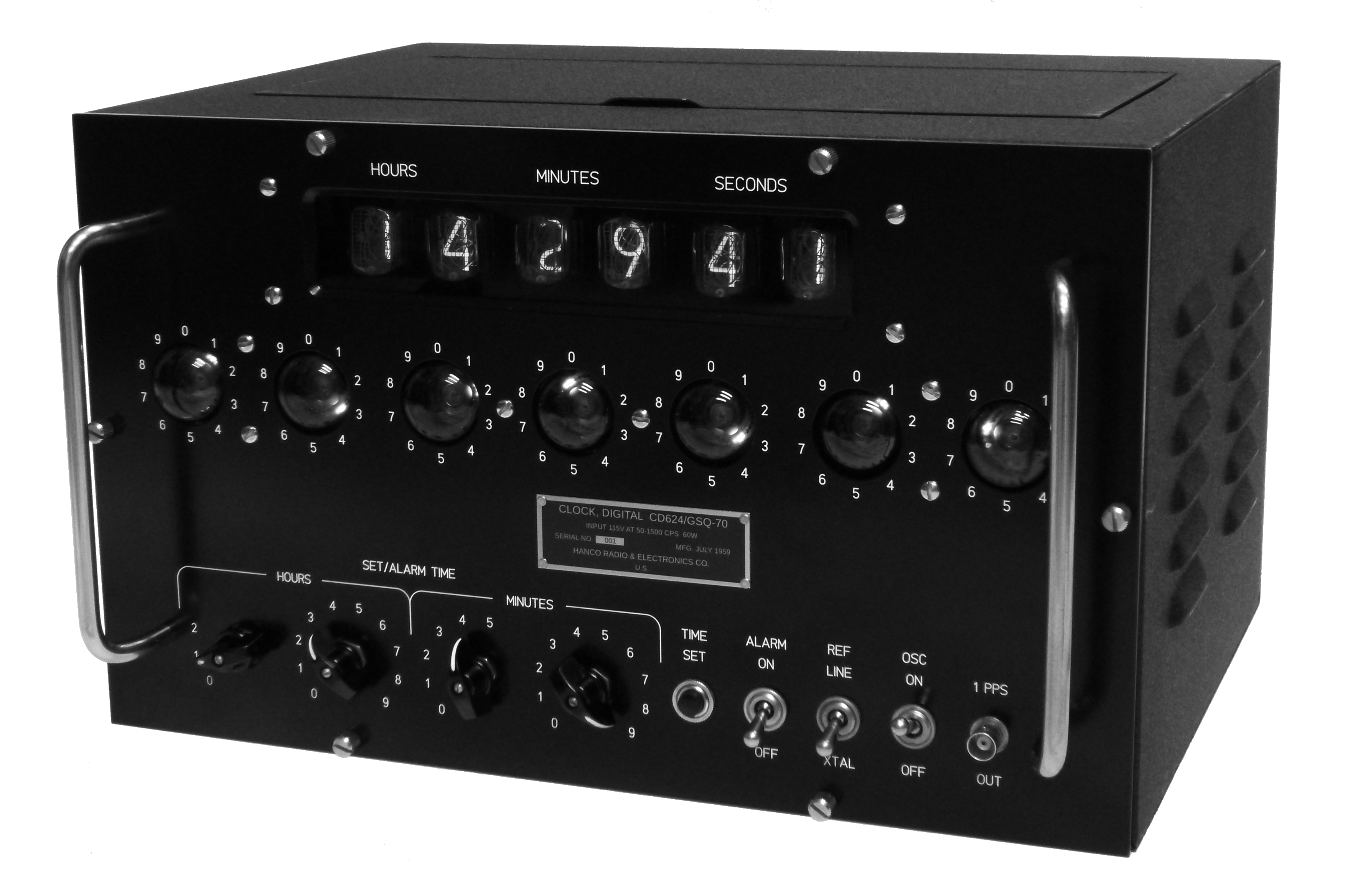

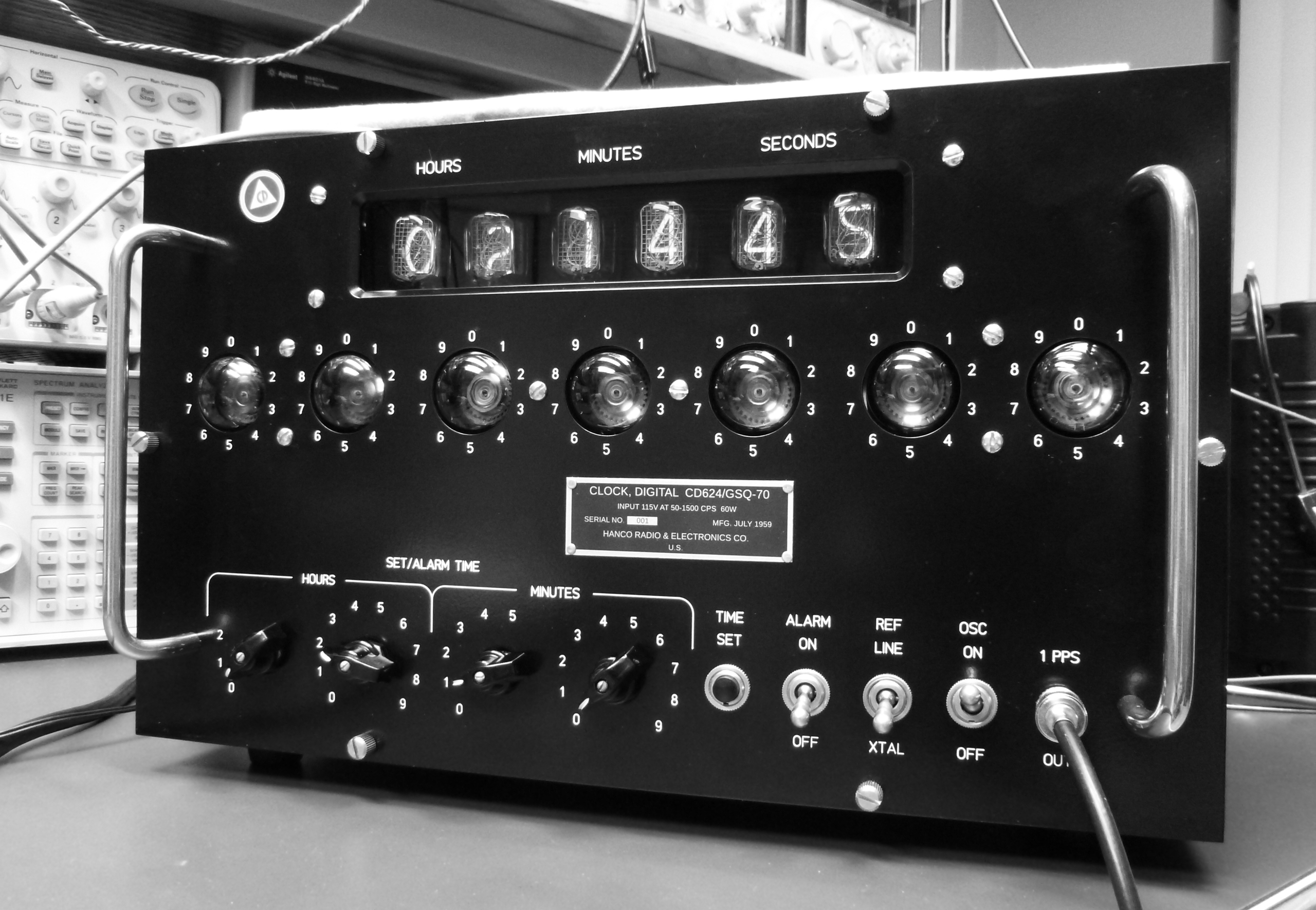

Front

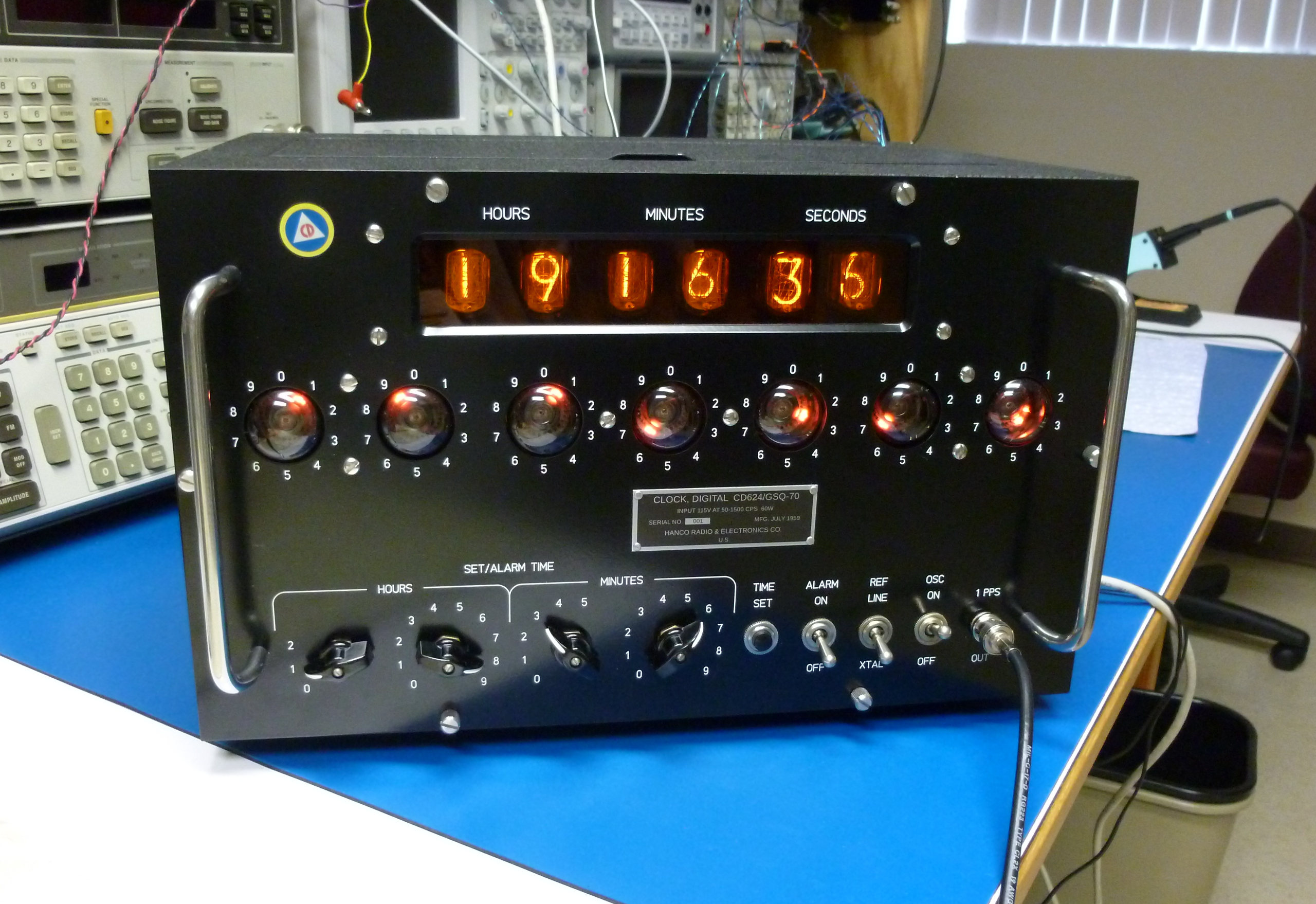

Front

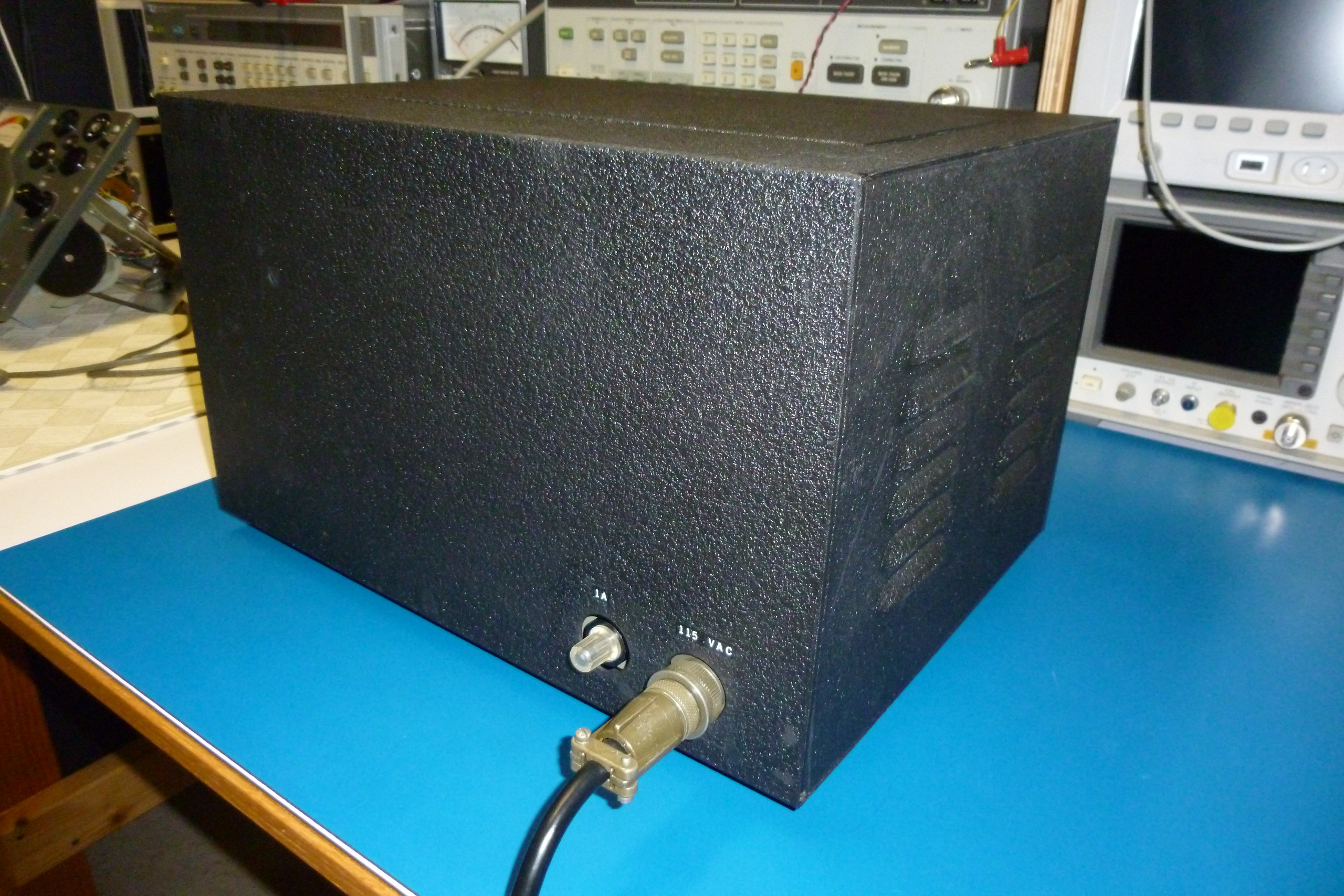

Rear with fuse and power connector

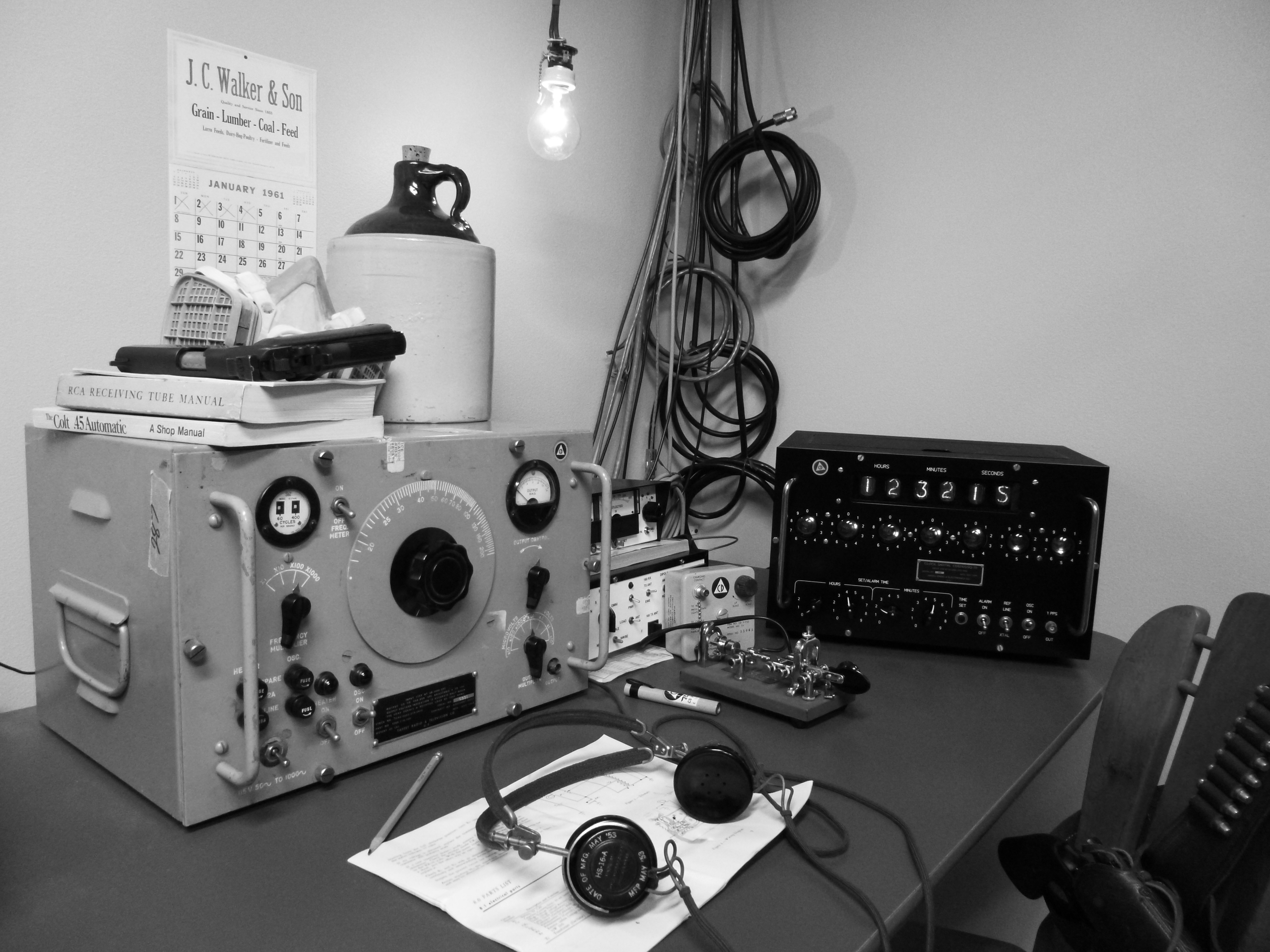

In a cold war bunker

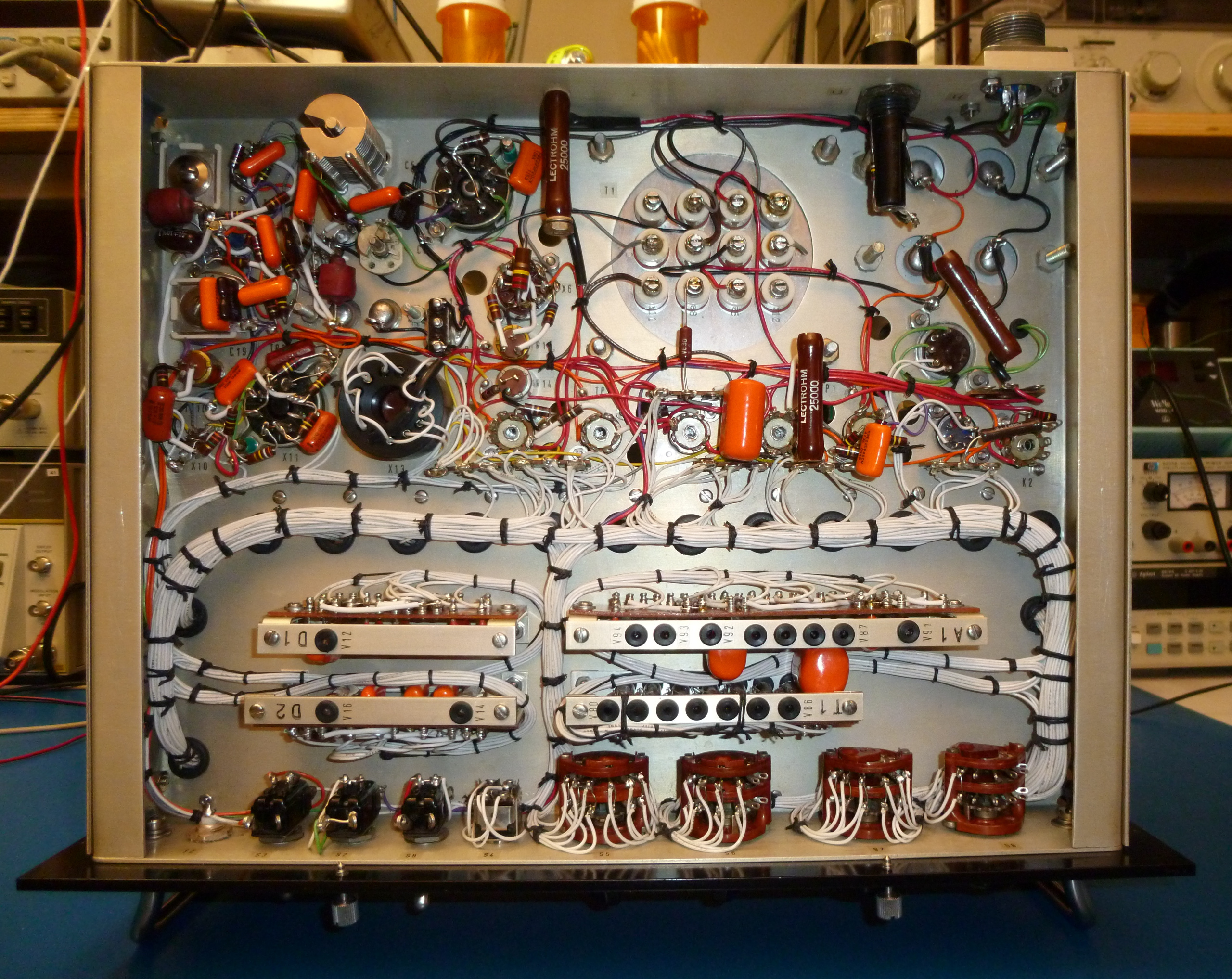

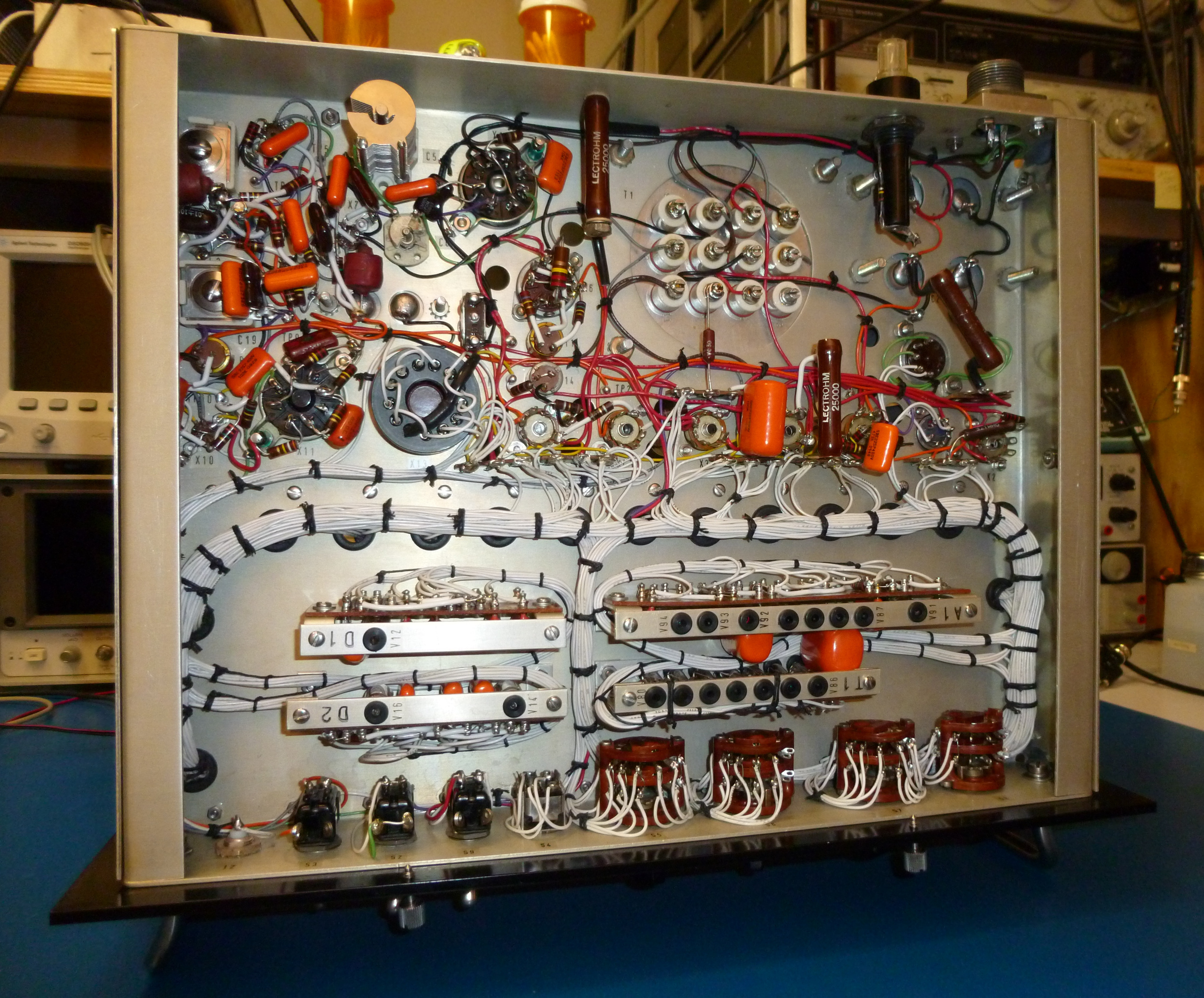

Chassis bottom

Chassis bottom

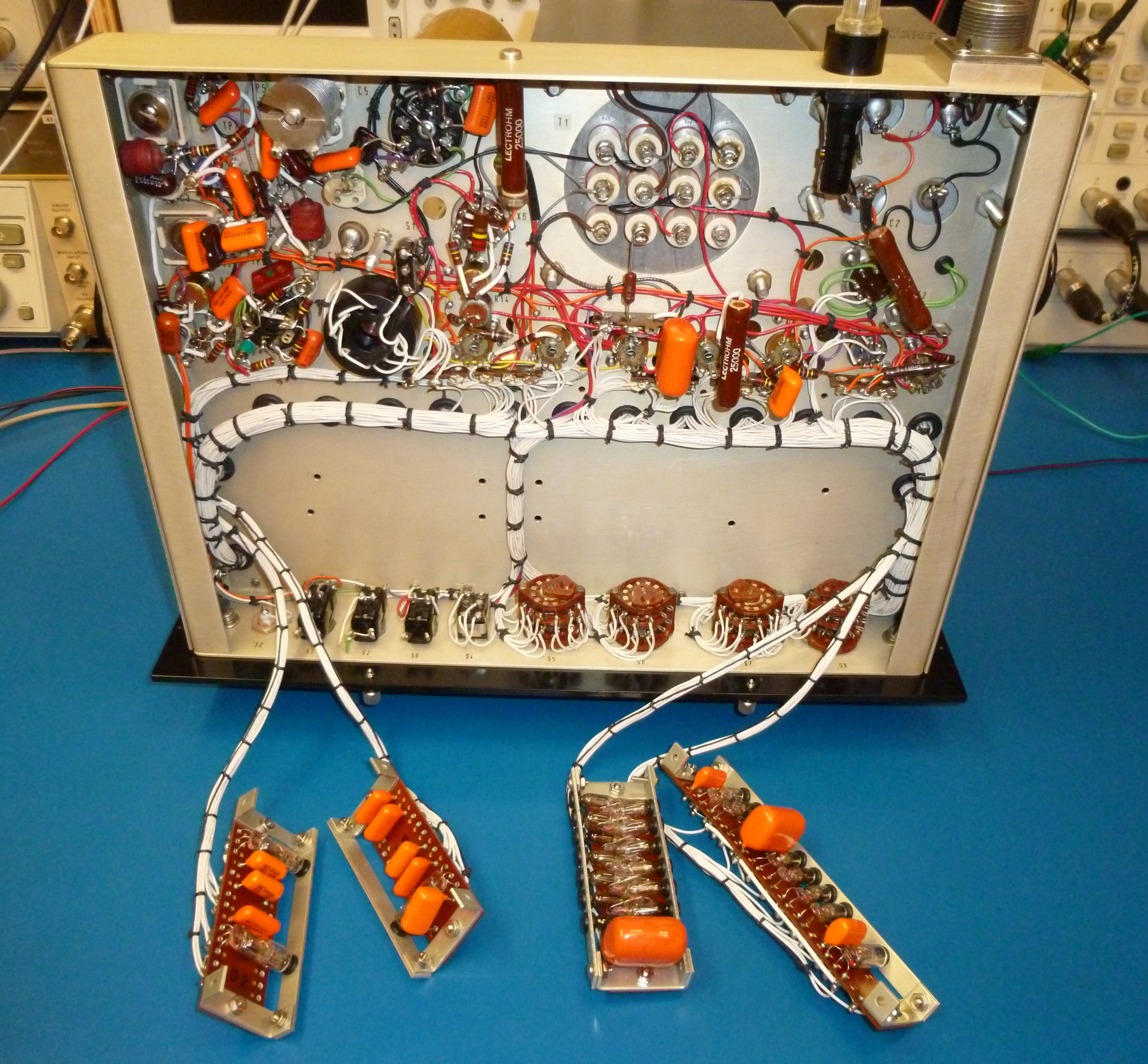

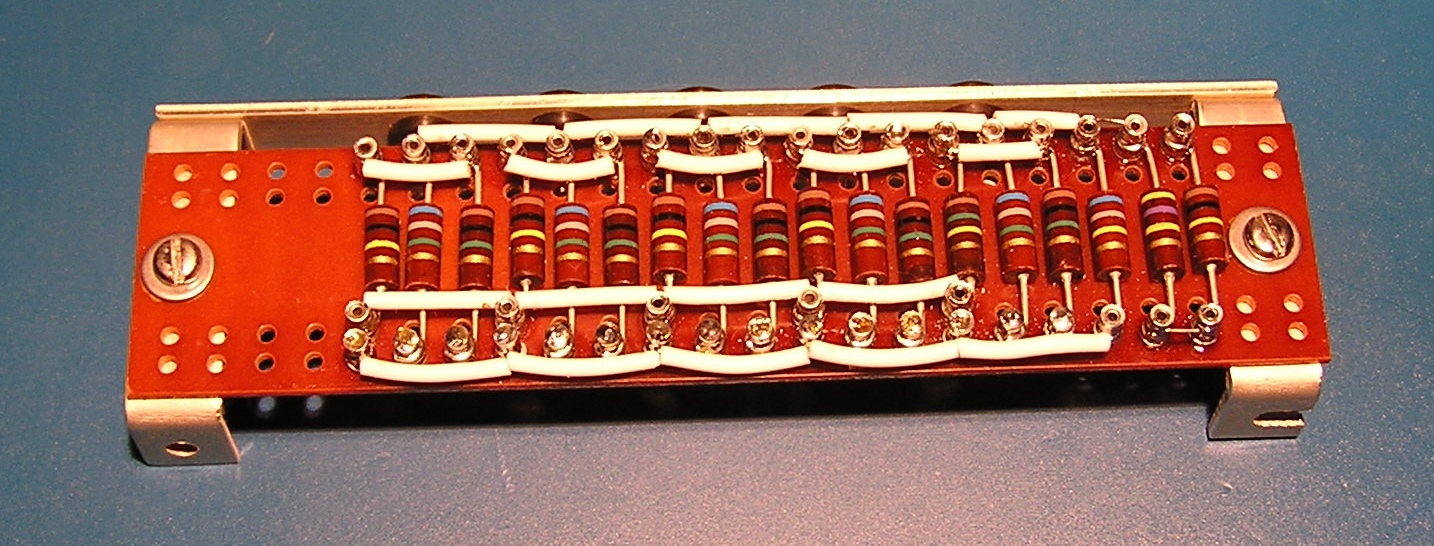

Bottom modules removed

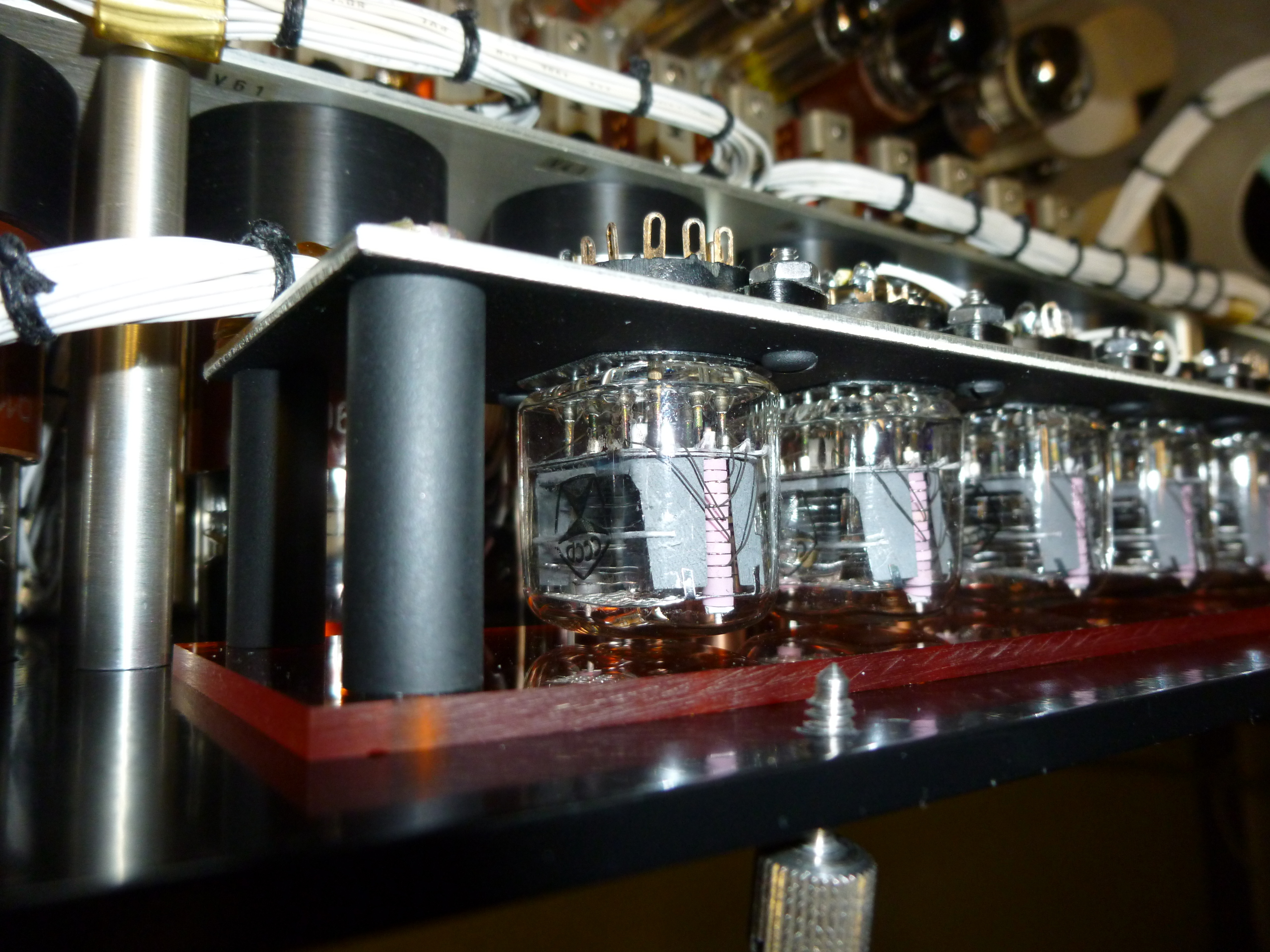

CCCP marked nixie tubes

Chassis rear

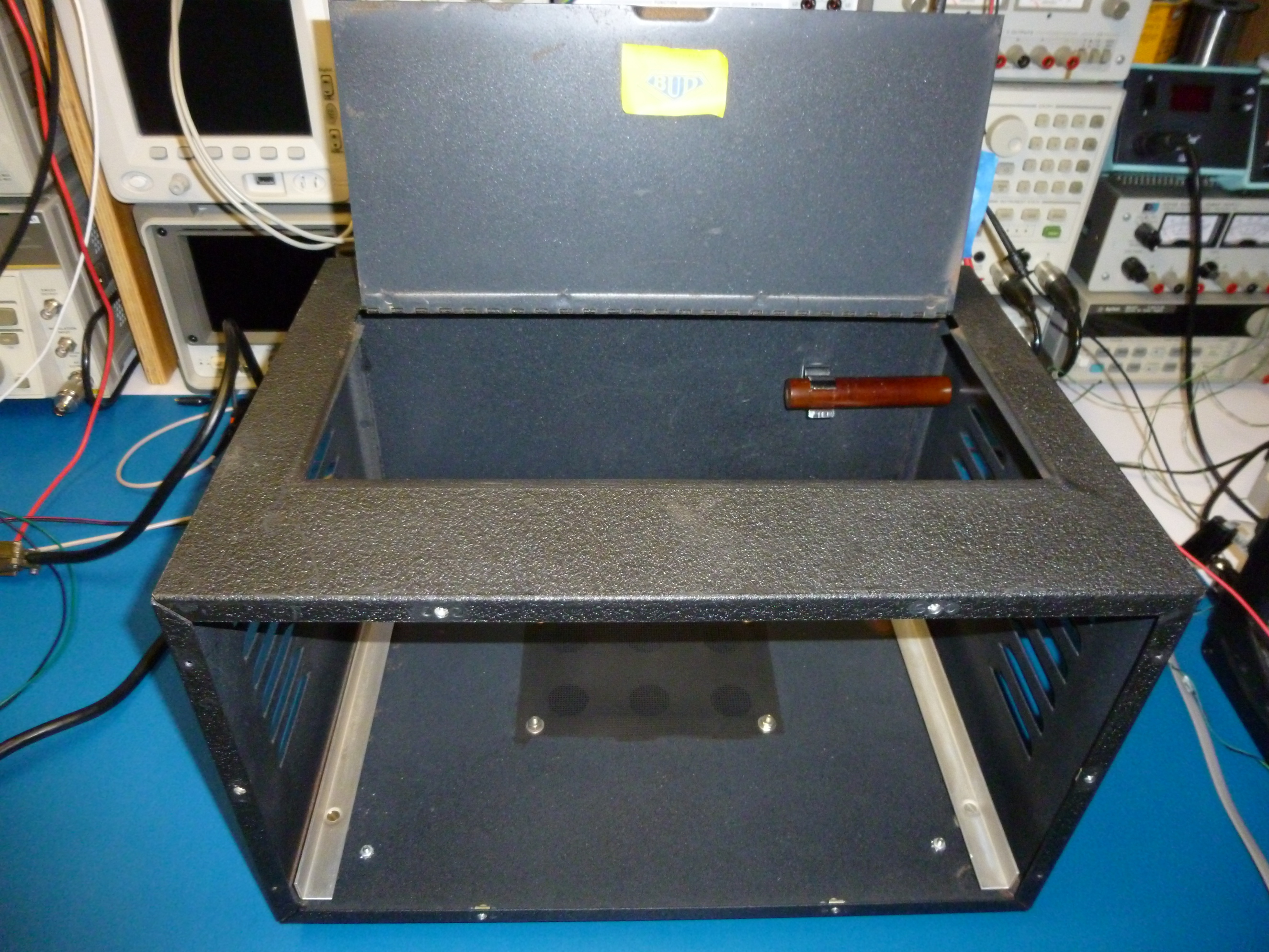

Cabinet and tuning tool

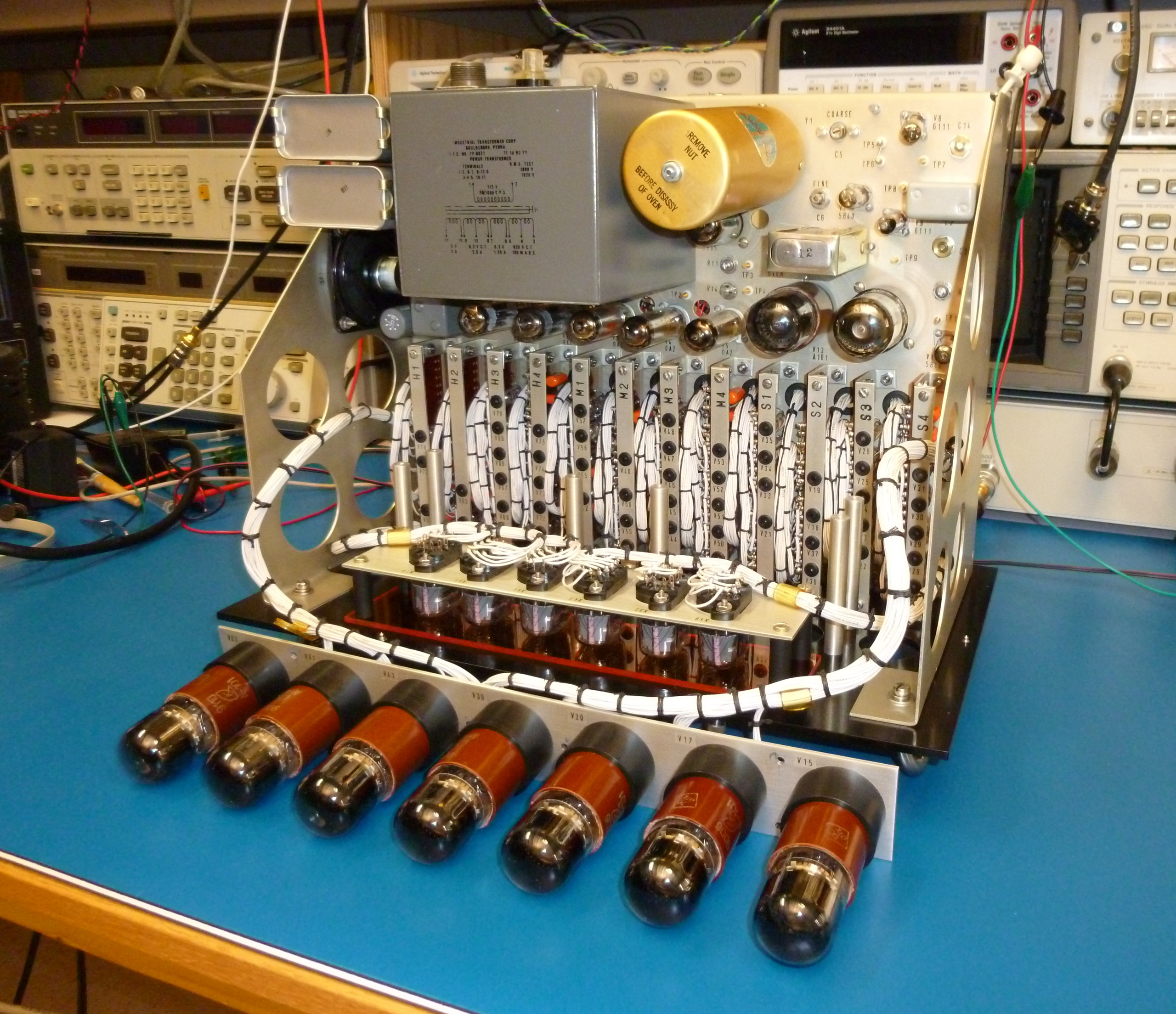

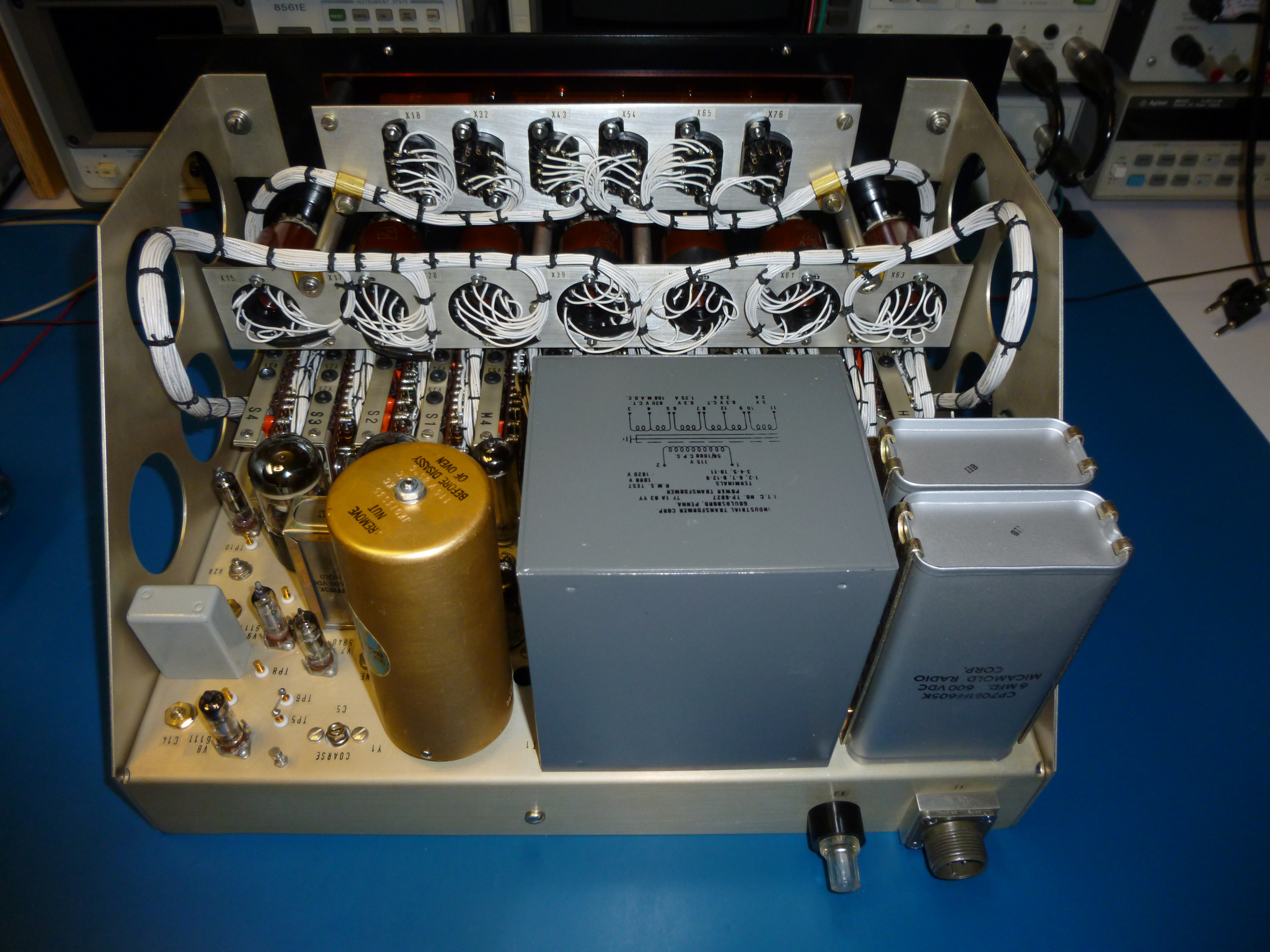

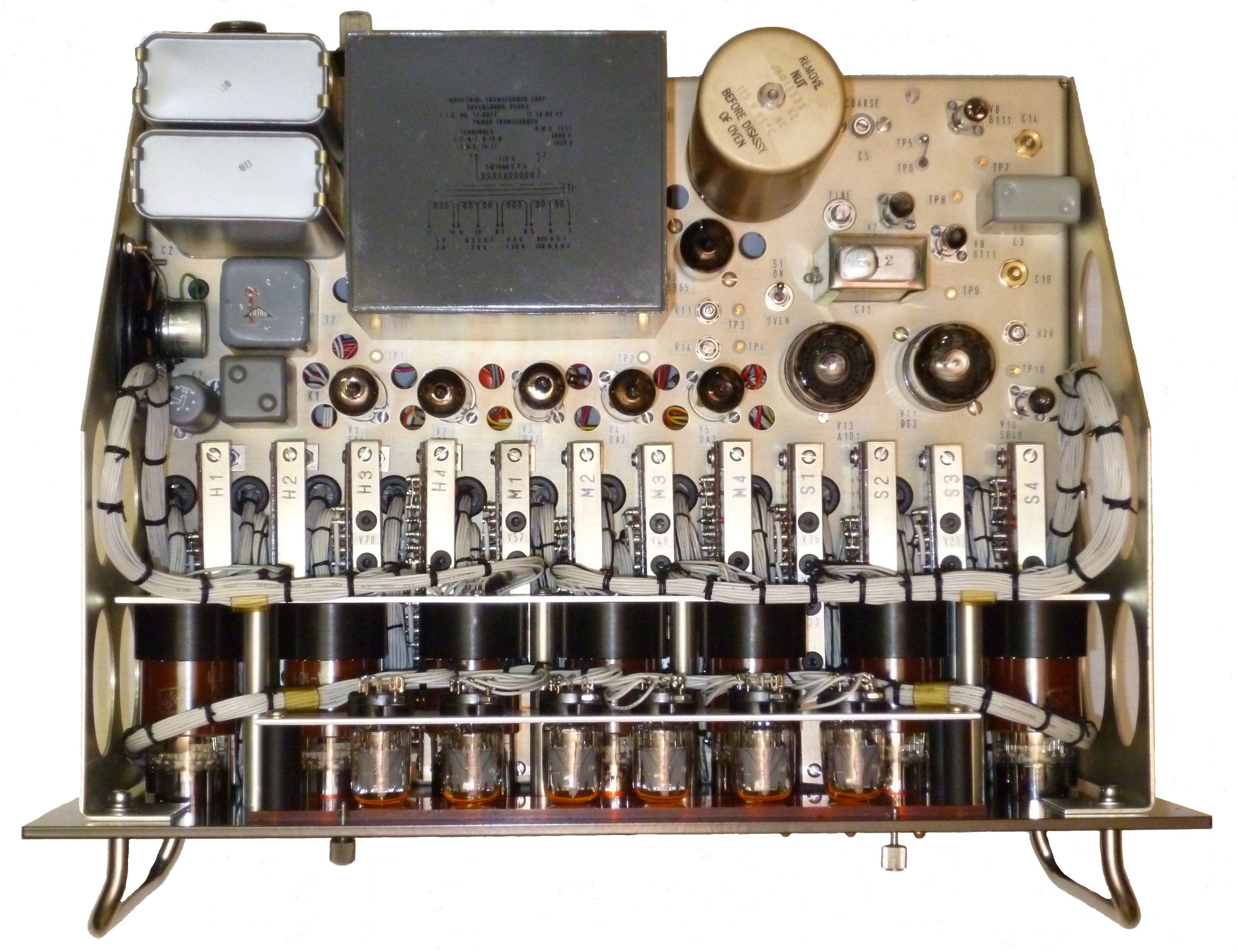

Chassis top

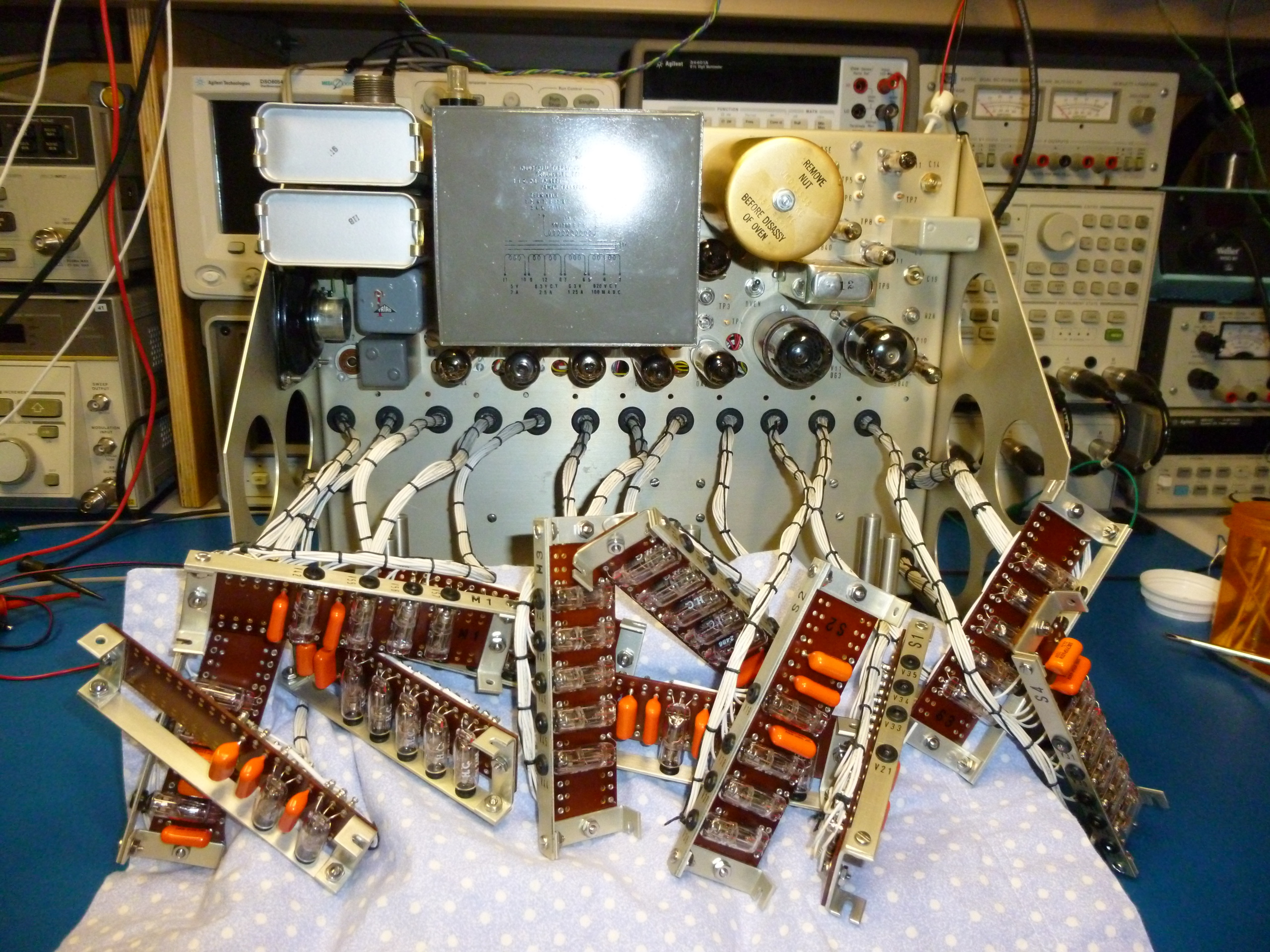

Top modules removed

Accessing the dekatrons

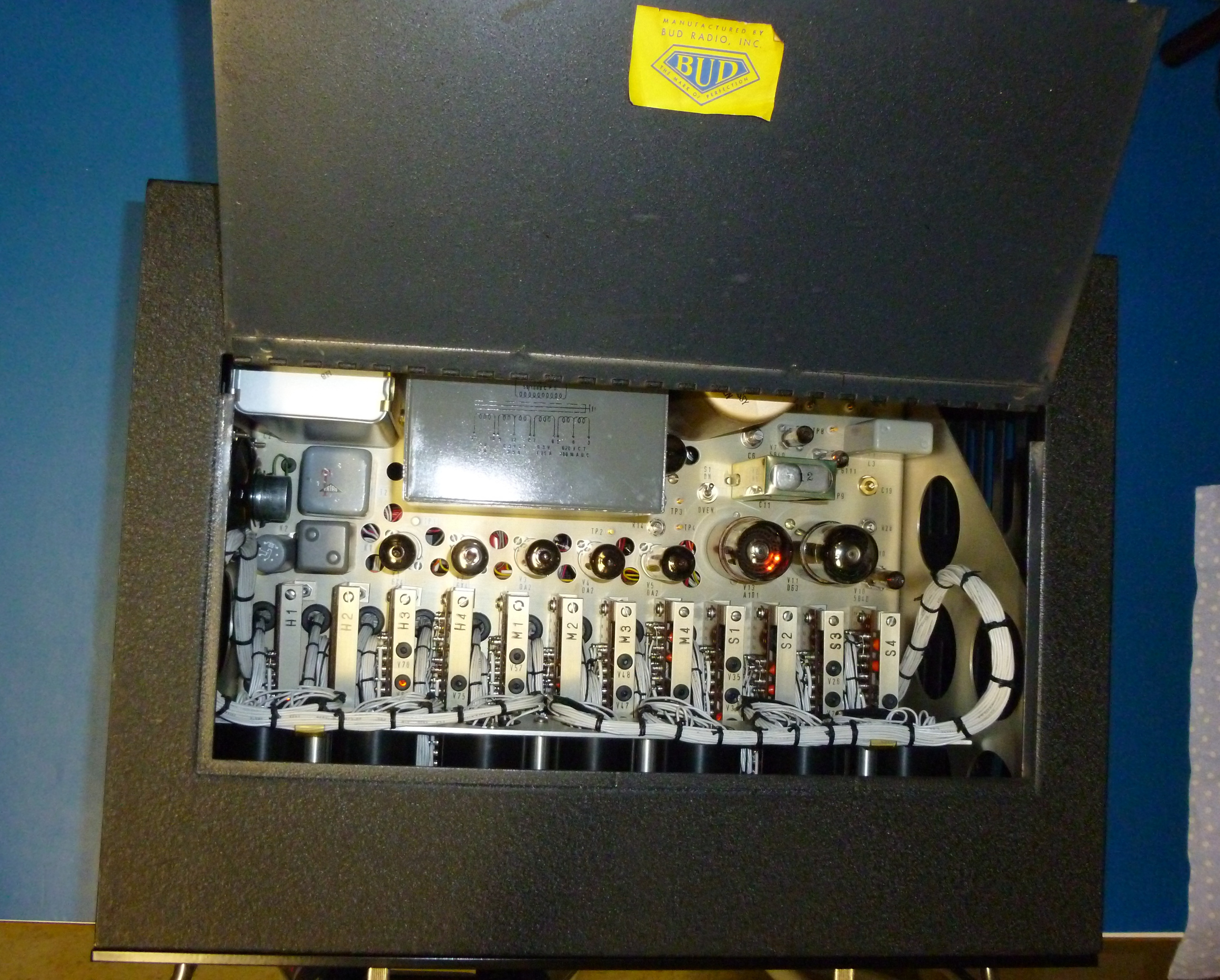

Hinged top

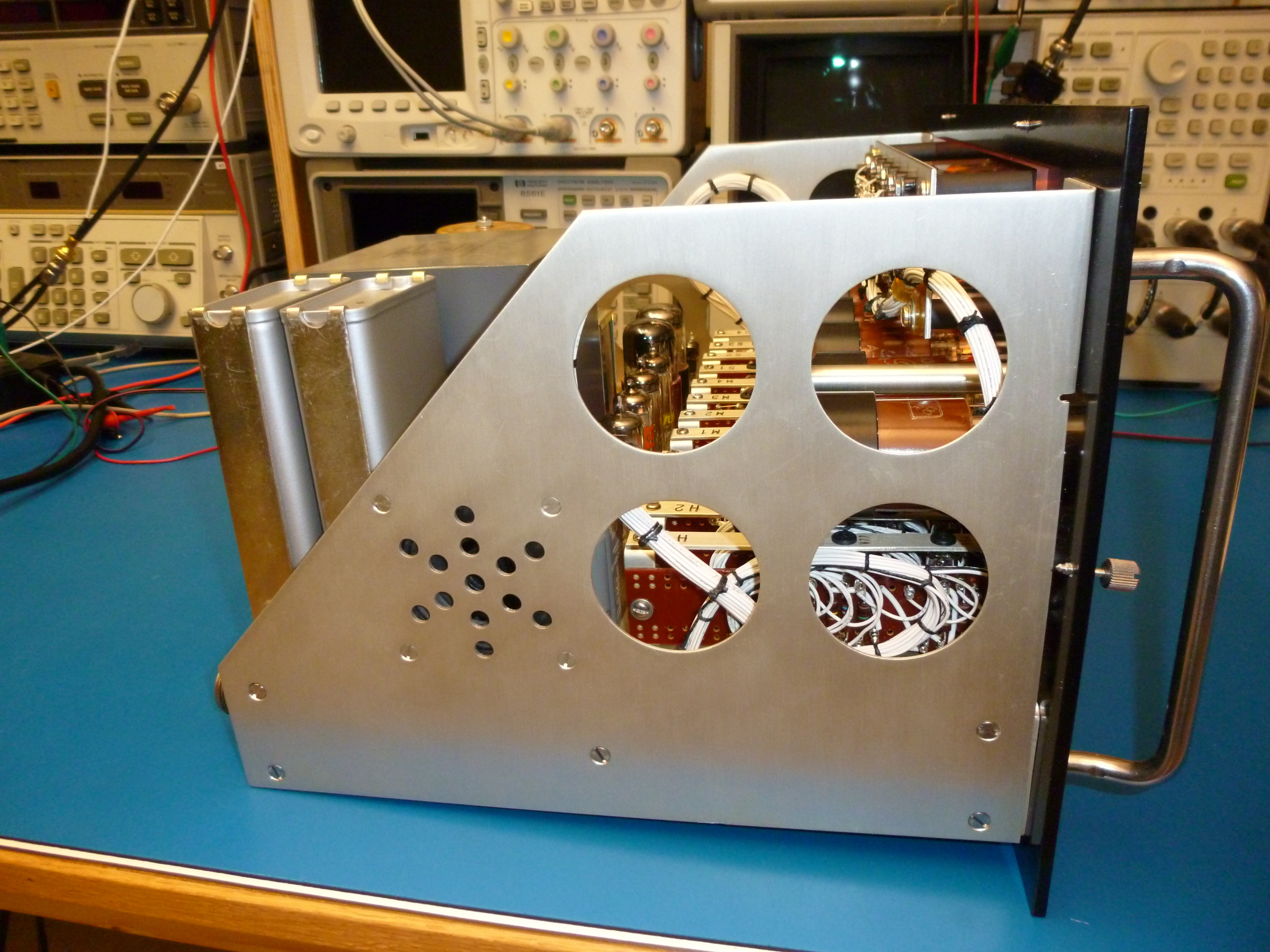

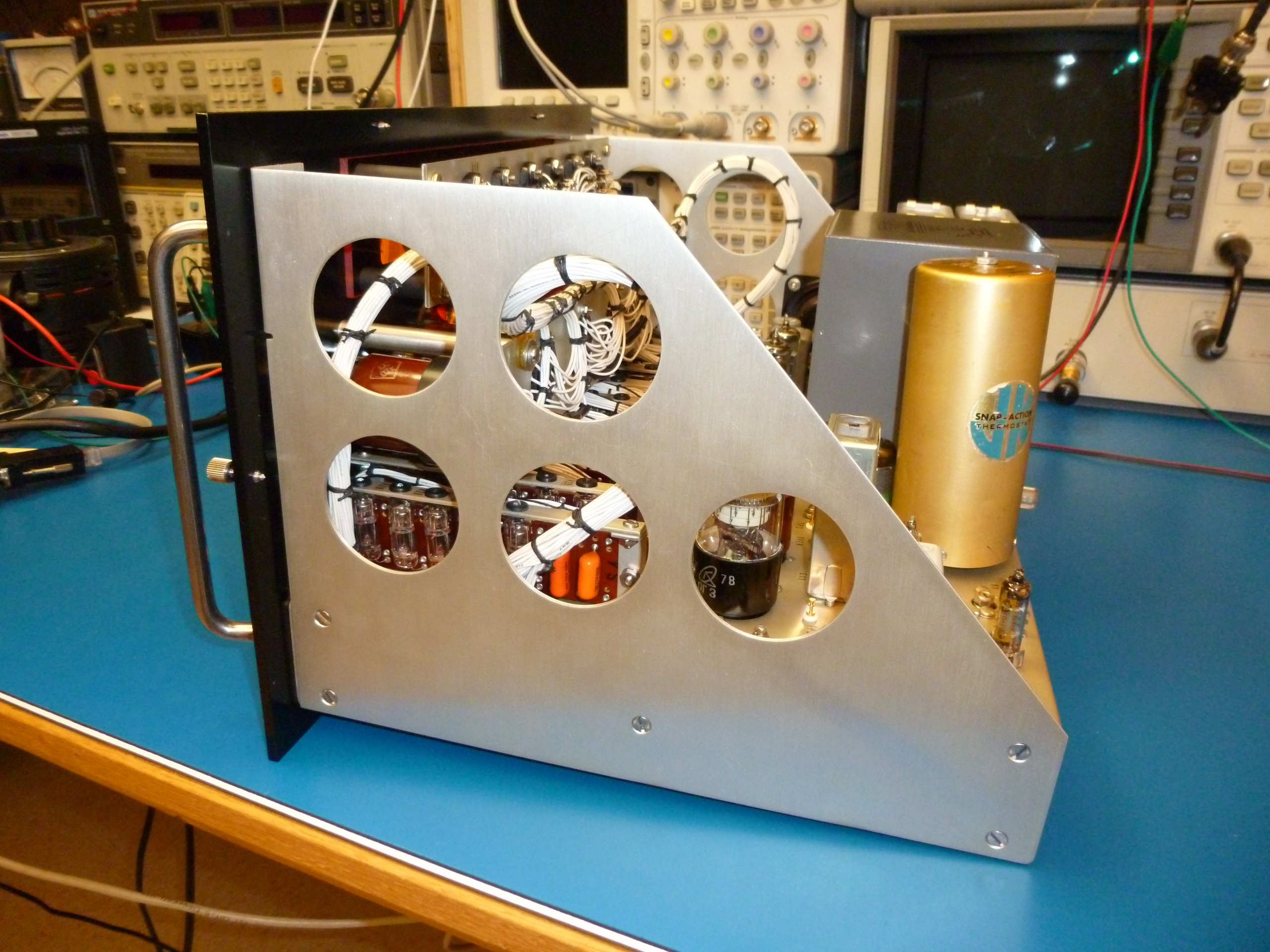

Chassis left side

Chassis right side

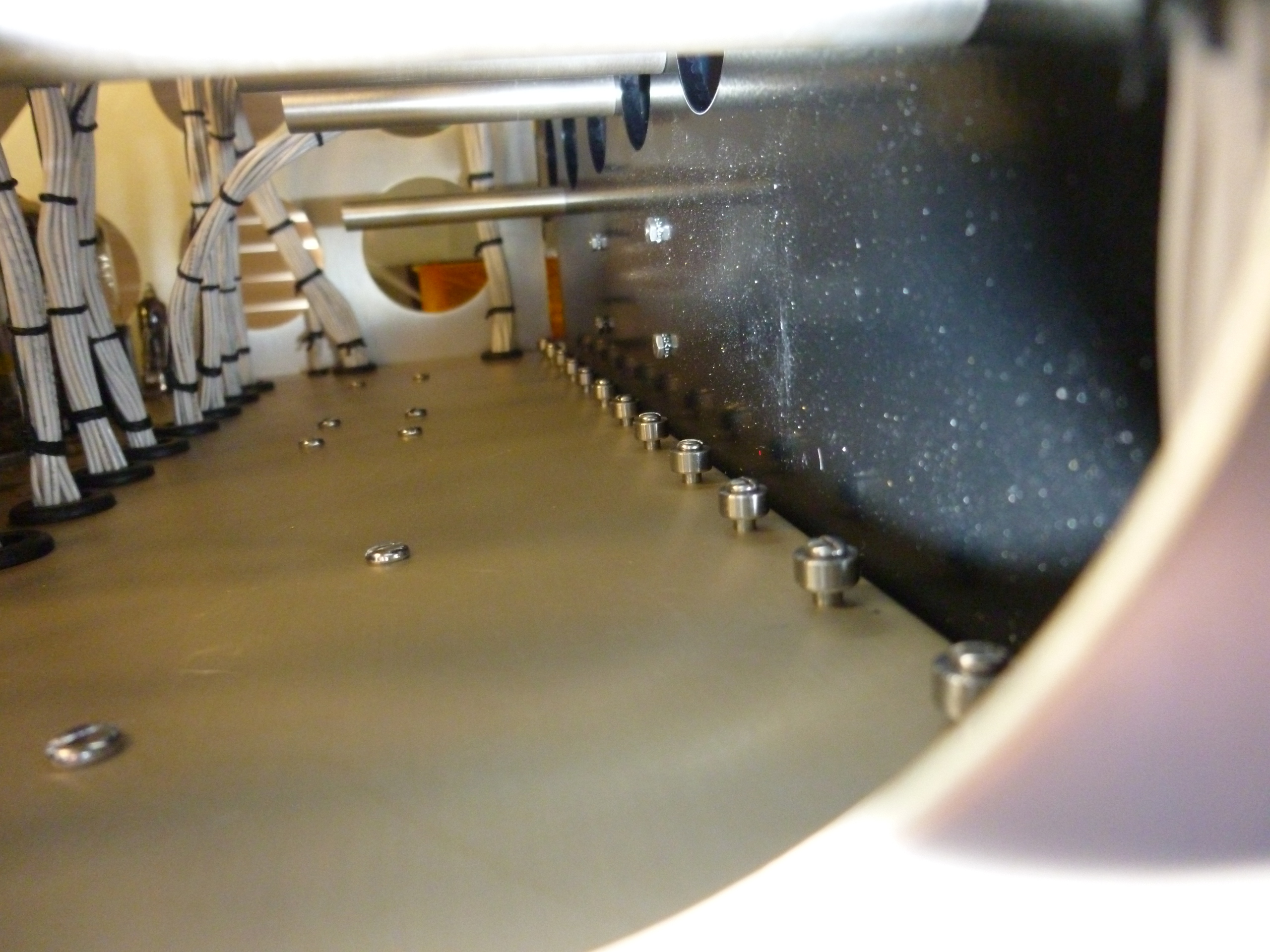

Shoulder screws for module hold down

Tubes closeup

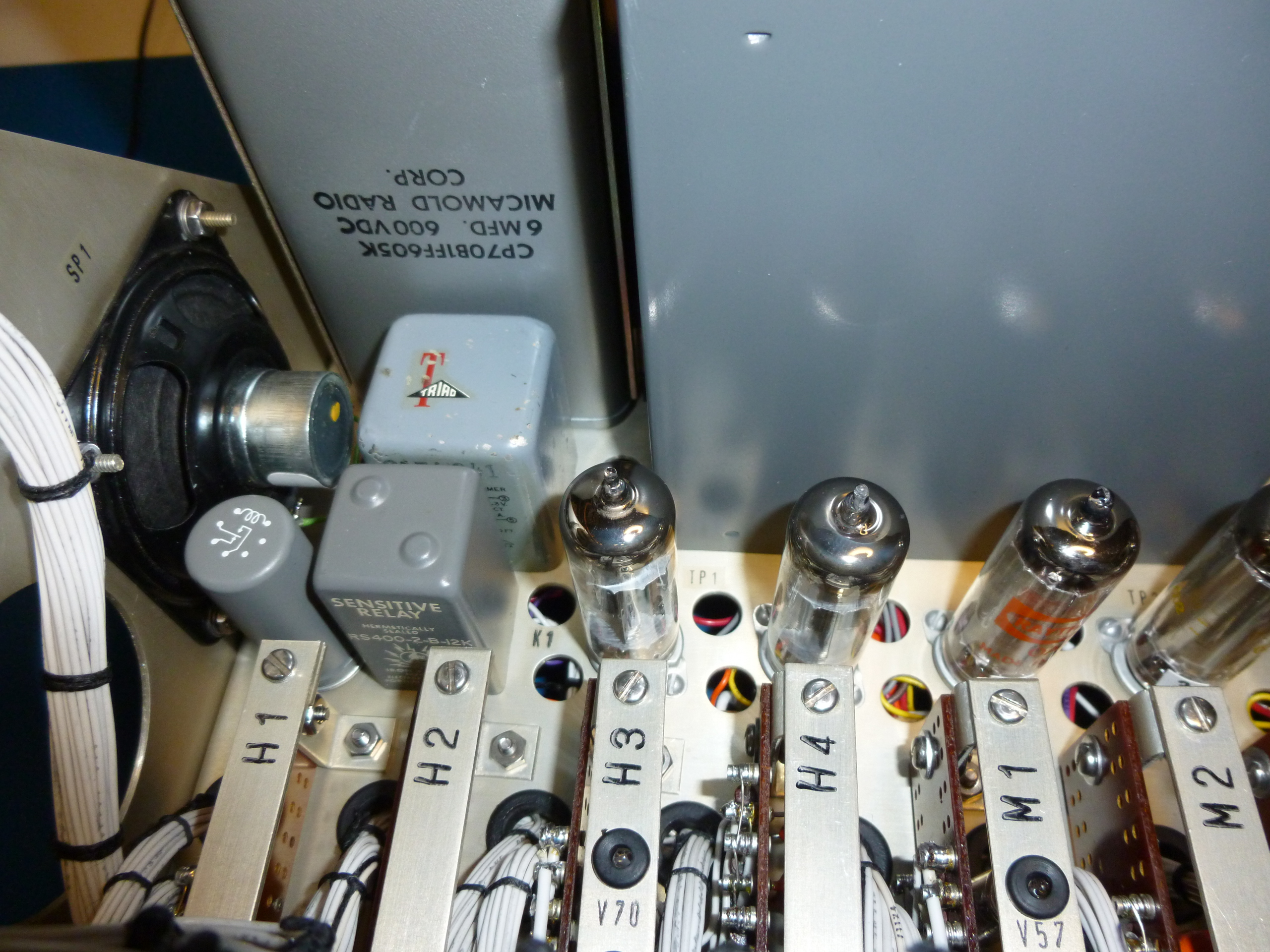

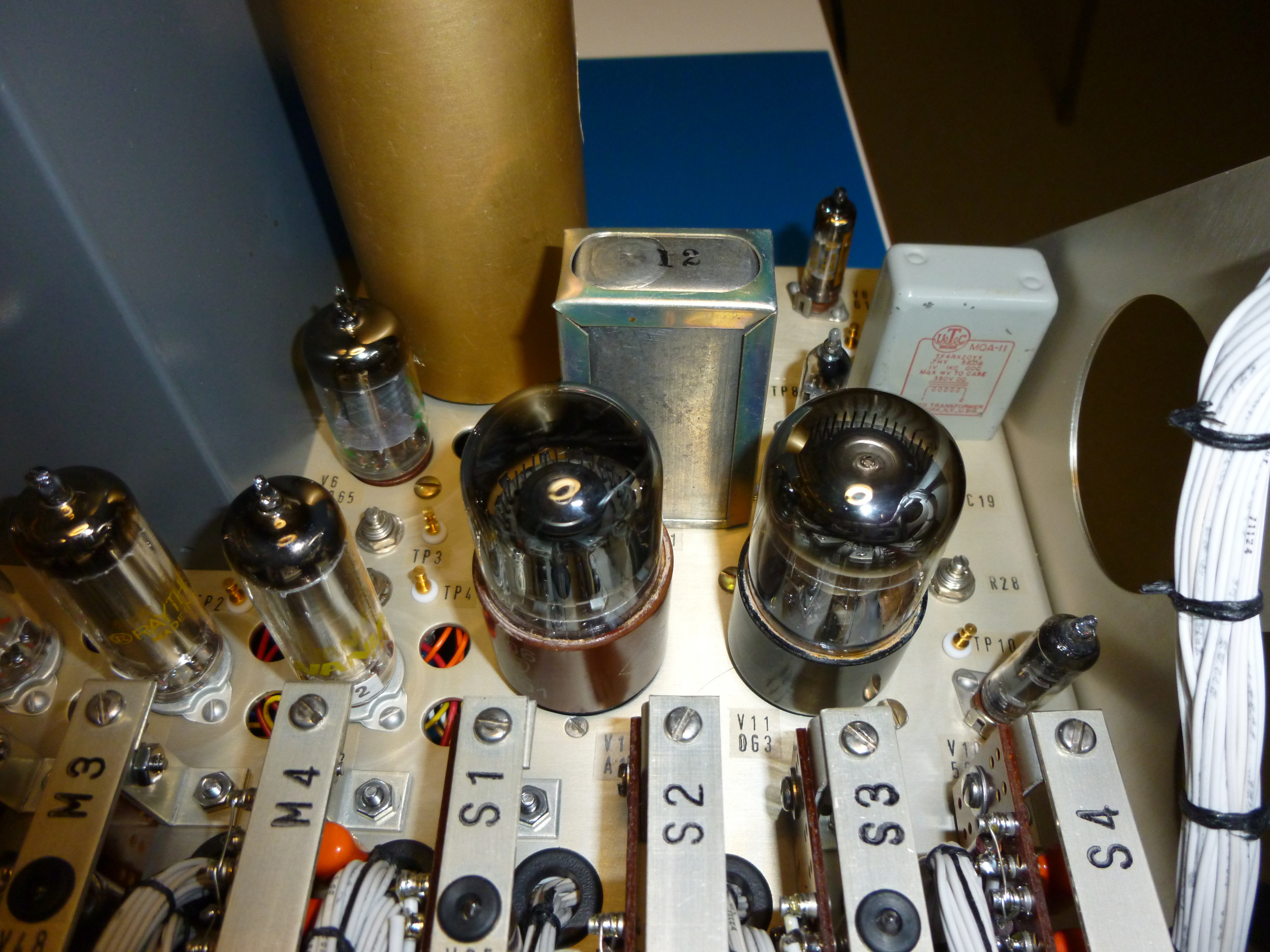

Relays, alarm xfmr, filter caps

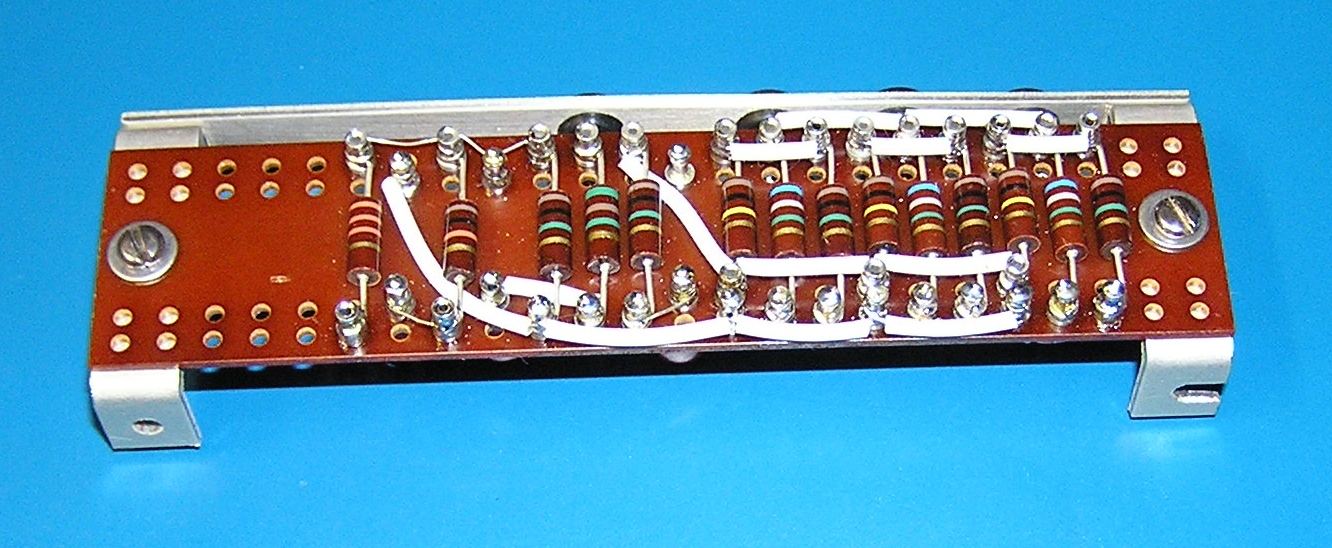

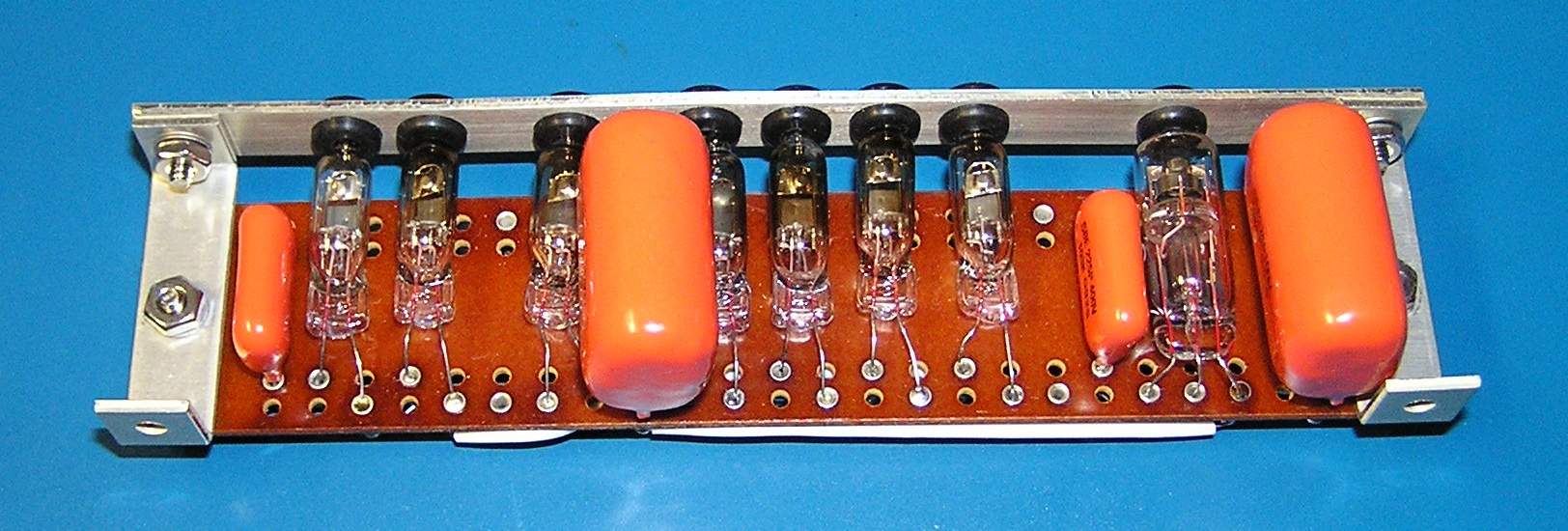

Seconds module #3

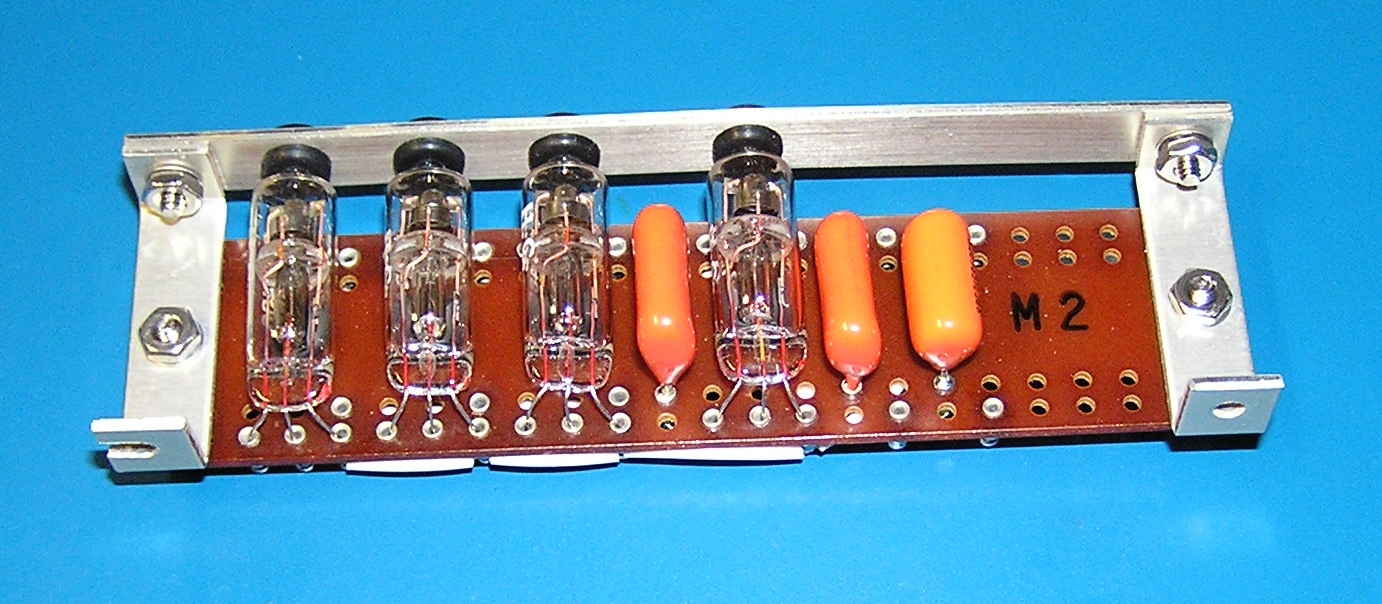

Minutes module #2

Alarm module

Minutes module #2

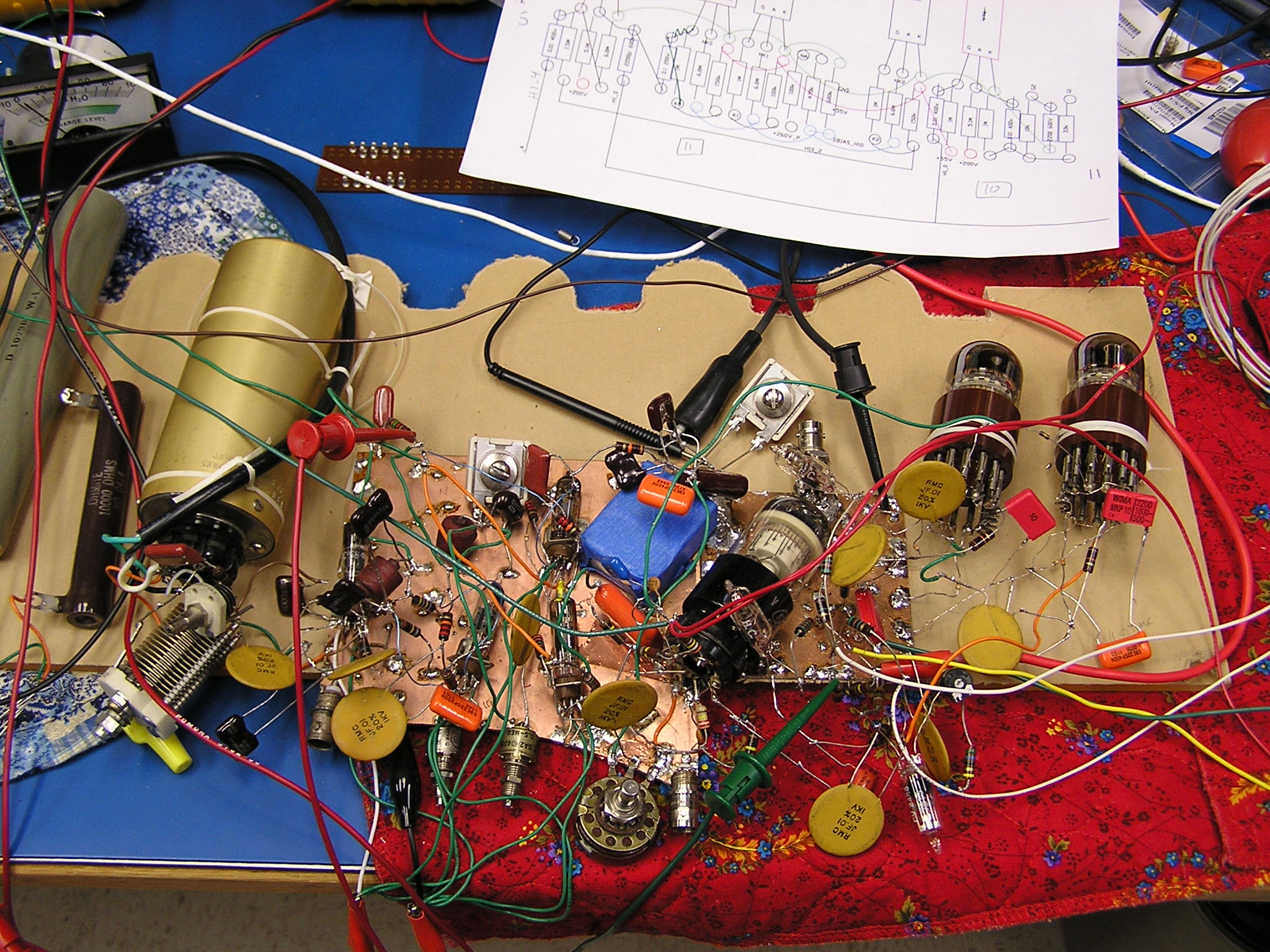

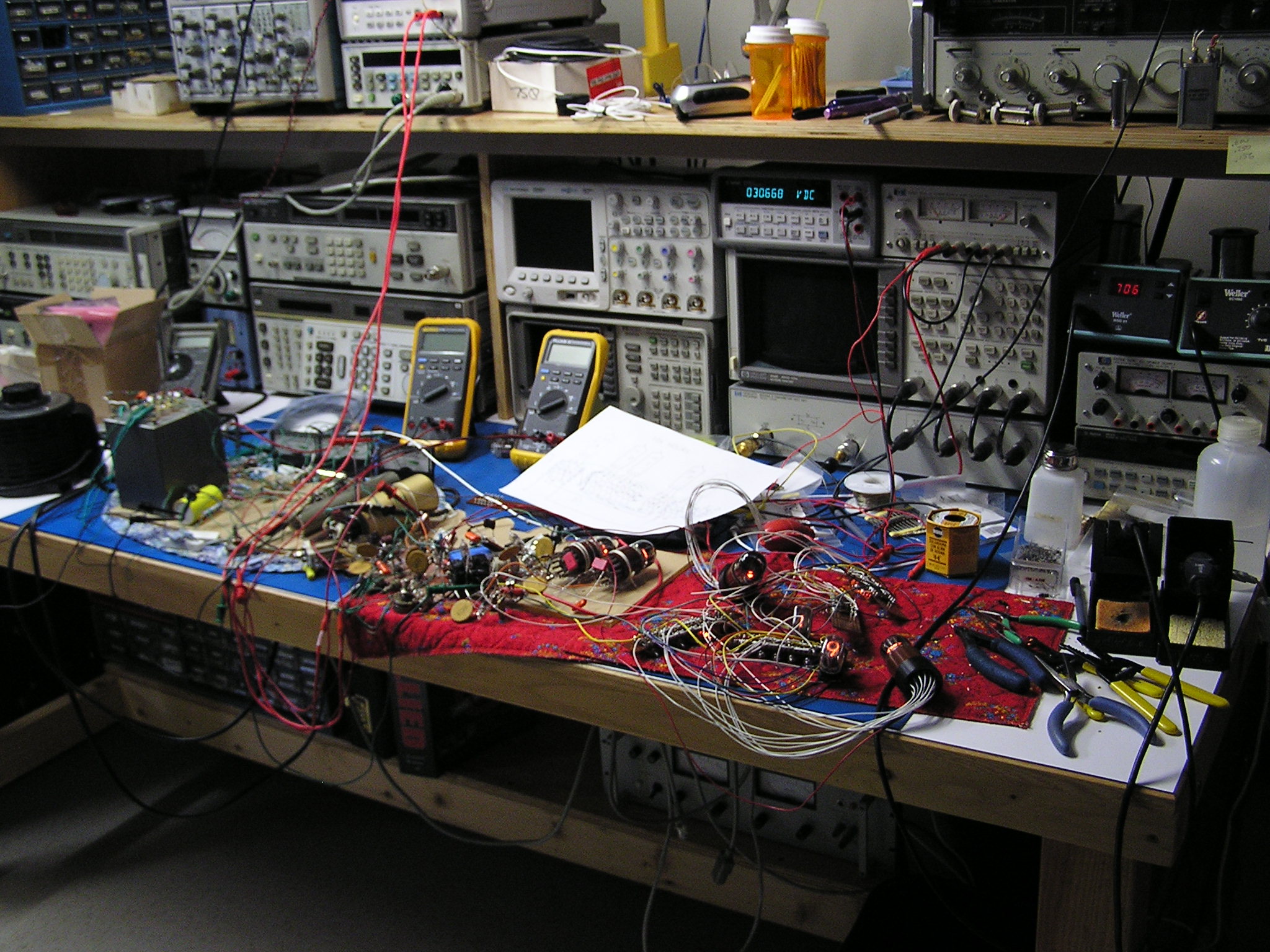

Early design and breadboard stage


Breadboarding counters

Breadboarding oscillator and dividers

Breadboarding power supply

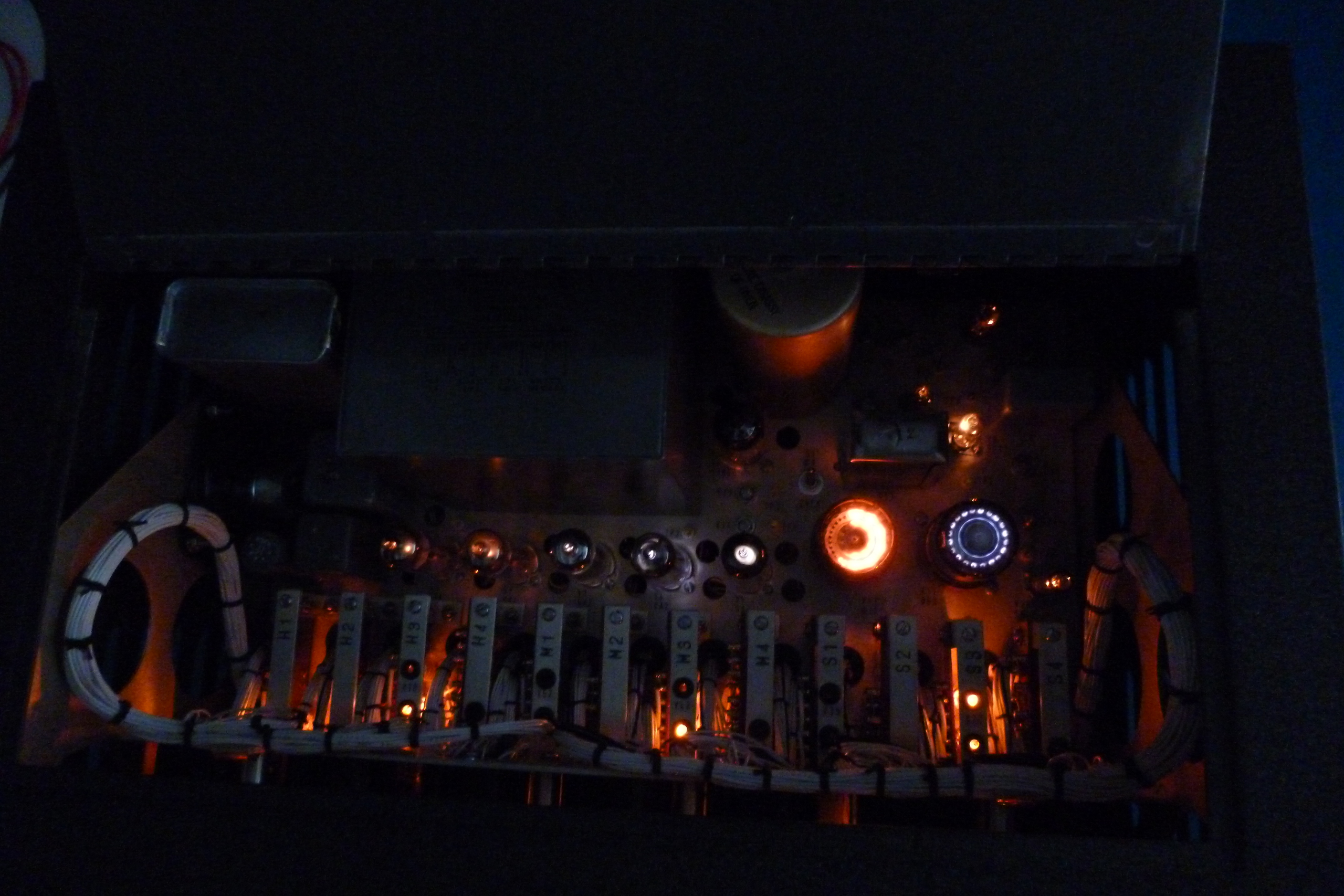

Glowing neon, argon, and tungsten

Glow

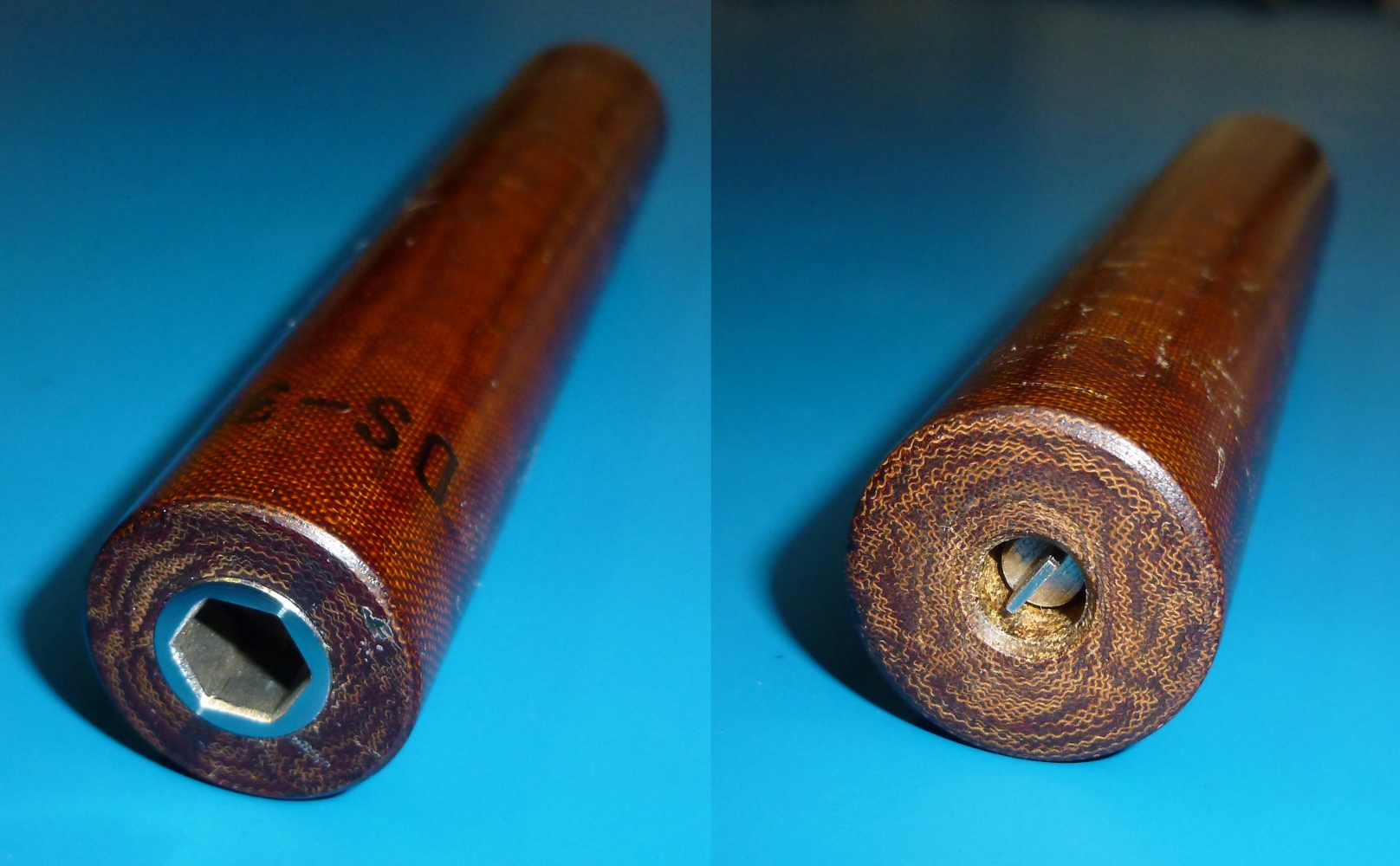

DS-36 tuning tool

Morion 36 kc crystal

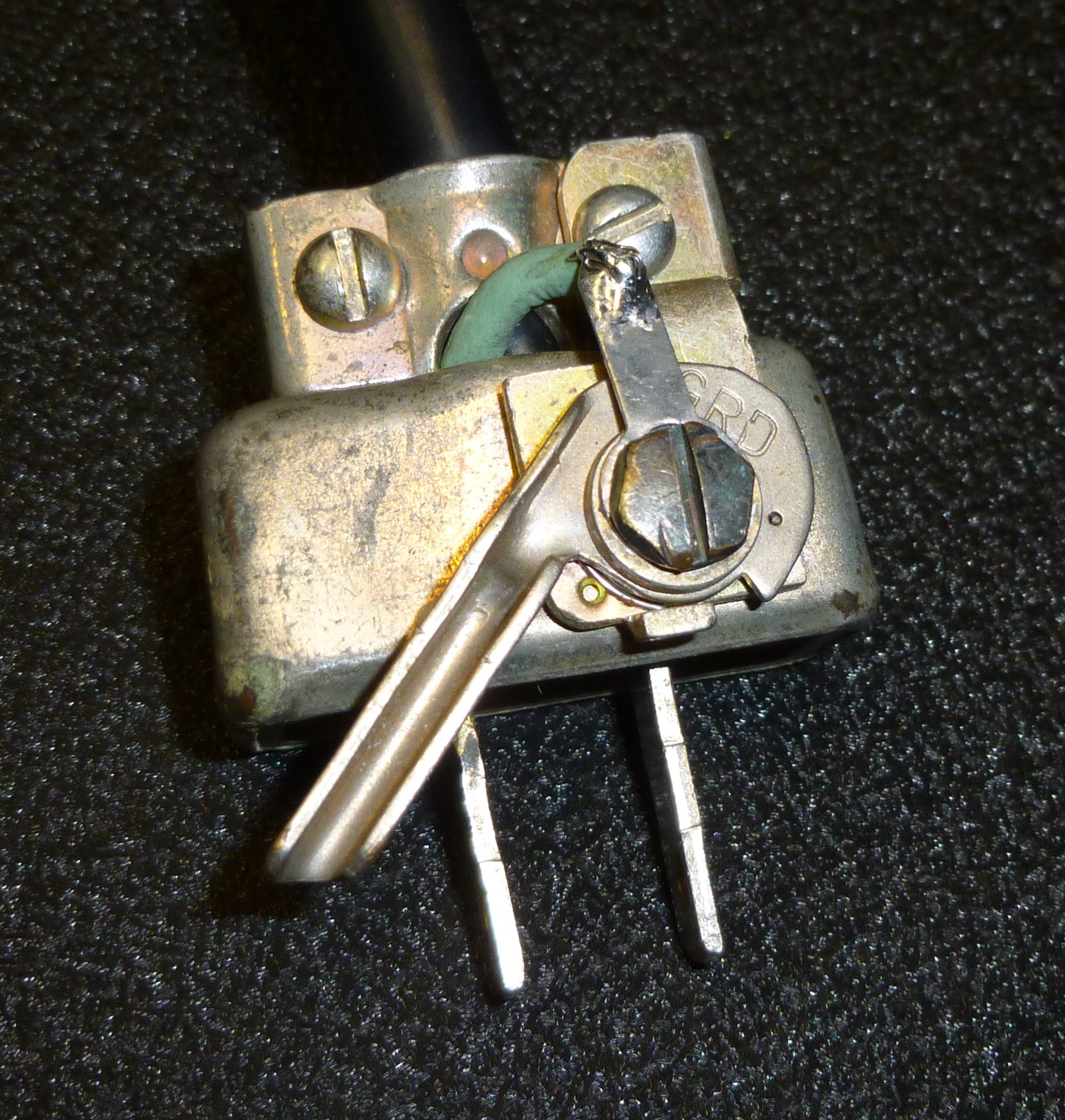

Power plug with swing away ground

Schematic sheet 1

Schematic sheet 2

Schematic sheet 3
